Name: KLZ-920 Automatic Grooving Machine
Brand: Saili
SKU: 00006
Rating: 4.1 (53 reviews)

Function Introduction

Feature：

Automatic grooving machine is used forremoving theV groove / U groove fiber fromcardboard,chipboard,rigid board,corrugated board,paperboard ,MDF ,etc.

It has high notching accuracy, dustless, little noise, highly effective, energy conservation, environmental protection. Help you to solve the package grooving problem.

Application:Widely used in gift box,phone box,shoe box,chocolate box,jewellery box,cosmetic box,tea box ,wine box,sweet box, candle box ,rigid box ,etc

Performance：

Dedicated conveyor belt for deliver the waste material out of the machine automatically,save labor,improve output.
Equipped with Saili special automatic blade sharpener .
Equipped with 12 sets of grooving knife ,each knife head can be adjustment indenpendently ,so as to adjust the grooving angle easily .
2 crossbeams can be assembled with 3 rows of grooving knives, one of crossbeams can be hung up and down knives, 3 rows of knives working at the same time, there is no requirement for grooving spacing
According to different material to choose the corresponding Auto edgeSelf-aligning device, it can be wear-resistant rubber wheels type,tank wheel type ,thick beads type , to ensure the stability of edge correction,and also improve the accuracy and security greatly,easy to operate.
The grooving accuracy can be upto±0.05mm when it work with thin paper .
The core part of drum is made of seamless steel,polished,chrome plated,aging treatment,precipitation,so it is not only very round,the beating accuracy is up to 0.03mm,high durability,long life,the grooving accuracy is +/-0.05mm .
Brand electrical appliances, aluminum rectifying strip, cast iron structure beam to help the machine durable.
No dust, no noise, no burrs;High speed and high precision;Automatic feeding, automatic rectifying, automatic slotting, automatic collecting.

Technology Parameter

Cardboard width	100-850mm
Cardboard length	100-500mm
Thickness	200GSM-3.5MM
Grooving precision	±0.1mm
Speed	100-120PCS/Min (work piece size 200*200mm)
Grooving degree	90° knife (80-100°),120° knife (110-130°) Adjust the Angle of each knife head individually
Grooving knives	12 sets ( 12 knives in 3 rows)
Girder (crossbeam)	2
Power	2.5KW
Groove distance (between blades from different girder)	No limit
Groove distance (between blades from the same girder)	Min. 70mm
Way of waste cleaning	By dedicated conveyor belt
weight	1800kgs

Saili Company is providing professional grooving solution for packaging industry.The machine can be customized.

Let's make your packaging much more beautiful and professional than others.

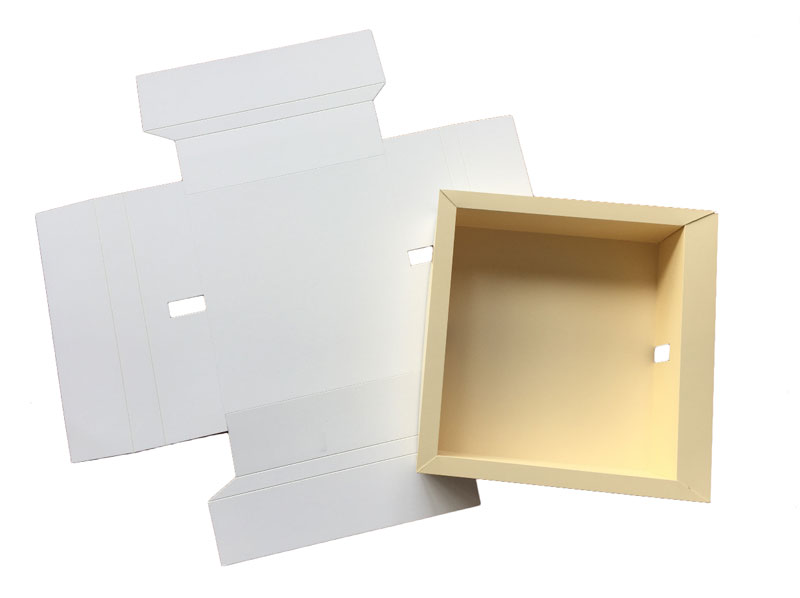

Sample Display
