How Does a Cardboard Grooving Machine Work?

Cardboard grooving machines play a crucial role in the packaging and printing industries. They are used to create precise, uniform grooves in cardboard sheets, enabling them to be folded easily into boxes, displays, and other structures. Understanding the operation of these machines can help manufacturers optimize their production processes and improve the quality of their products.

1. Understanding Cardboard Grooving Machines

Cardboard grooving machines are designed to cut or crease cardboard along specific lines, creating grooves that facilitate easy folding. These grooves are essential for making packaging materials that are both functional and aesthetically pleasing. The primary function of the machine is to create clean, accurate grooves without damaging the cardboard.

2. Key Components of a Cardboard Grooving Machine

Grooving Die: This is a critical component of the machine, typically made from hardened steel or other durable materials. The grooving die includes blades or creasing rules that press into the cardboard to create the desired groove pattern.

Feed System: The feed system ensures that cardboard sheets are fed into the machine in a controlled manner. It may include rollers, belts, or other mechanisms to move the cardboard through the grooving die.

Adjustment Mechanisms: These allow for precise control over the depth and position of the grooves. Adjustments can be made to accommodate different sizes and types of cardboard, ensuring versatility in production.

Control Panel: Modern grooving machines are equipped with control panels that allow operators to set and monitor parameters such as groove depth, spacing, and alignment. Advanced models may feature digital controls for greater accuracy.

Support Table: The support table holds the cardboard in place as it is fed through the machine. It is designed to provide stability and prevent movement that could affect the quality of the grooves.

3. The Grooving Process

The process of creating grooves in cardboard typically involves the following steps:

· Preparation: The cardboard sheets are prepared and measured according to the specifications of the final product. The grooving machine is set up with the appropriate die and adjustments for the required groove pattern.

· Feeding: The cardboard is fed into the machine through the feed system. The machine's rollers or belts move the cardboard into position.

· Grooving: As the cardboard passes through the machine, the grooving die applies pressure to create grooves. Depending on the machine, this can be done using blades that cut into the cardboard or creasing rules that press into it to create a crease without cutting.

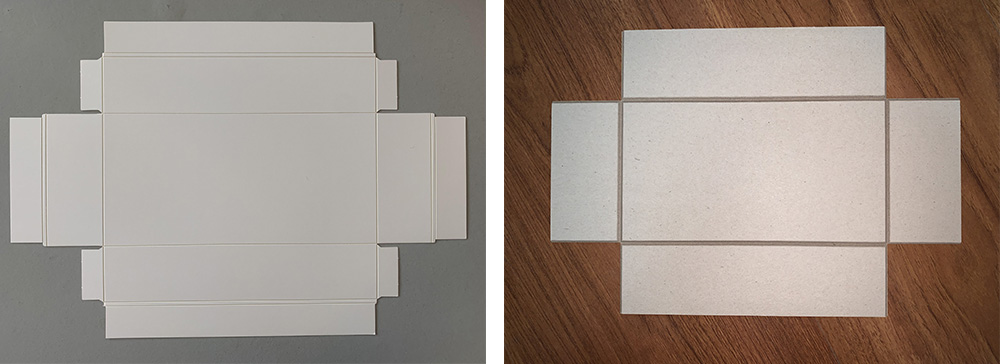

· Output: The finished cardboard, now with precise grooves, is ejected from the machine. It is then ready for further processing, such as folding, assembling, or printing.

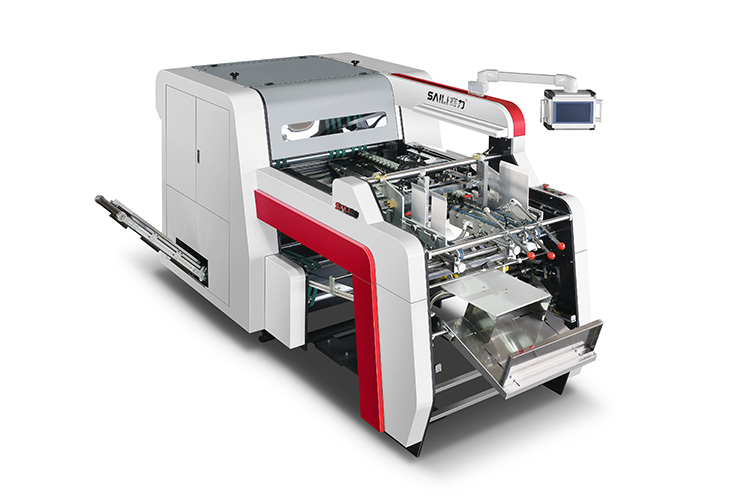

4. SLZ-928S Automatic Servo Grooving Machine Significant Advantages:

· For all kinds of gray board, cardboard ,Ivory board ，corrugated board  to cut V-groove.

· Servo numerical control adjustment of grooving knife : left and right movement accuracy 0.02mm.

· High precision, no dust, no noise, high efficiency, high energy saving, environmental protection.

· Servo numerical control adjustment of grooving knife : left and right movement accuracy 0.02mm.

· Help you to solve all kinds of packaging box grooving problems, to create high-end rigid boxes.

· Retain the historical size data: input groove pitch, other parts (large drum belt movement, pulling gauge movement, grooving knife seat left and right movement) a key to start in place.

5. Maintenance and Care

Regular maintenance of cardboard grooving machines is vital for ensuring their longevity and performance. Key maintenance practices include:

Cleaning: Keep the machine clean to prevent debris from affecting its operation.

Lubrication: Regularly lubricate moving parts to reduce wear and tear.

Inspection: Periodically check the grooving die and other components for signs of damage or wear and replace them as needed.

In summary

Cardboard grooving machines are essential ools in the packaging and printing industries, providing precise and efficient groove creation for various applications. By understanding their operation and maintaining them properly, Saili cardboard grooving machine manufacturers can ensure high-quality production and meet their packaging needs effectively.
