Professional Cardboard Grooving
Machine Manufacturer
Machine Feature :
- Automatic cutting and grooving by one machine.
- Remove the corner automatic for board quickly.
- Automatic feeding by conveyor belt.
- Use the PLC to check the cutting length which you want. Corner cutting by Servo knives.
- With stable chassis, ensure machine to run smoothly and quickly.
- Durable blade, equipped with blade sharpener which makes operation easier.
- If you don't need the cutting function, you can close it, and only use the grooving function of machine
- High precision and high speed for cardboard.
Saili company is the first designer and manufacturer of it. It's under patent protect, please don't copy or manufacture without authorization! Thank you for your cooperation and support!
Technical parameters:
|
Multi-function |

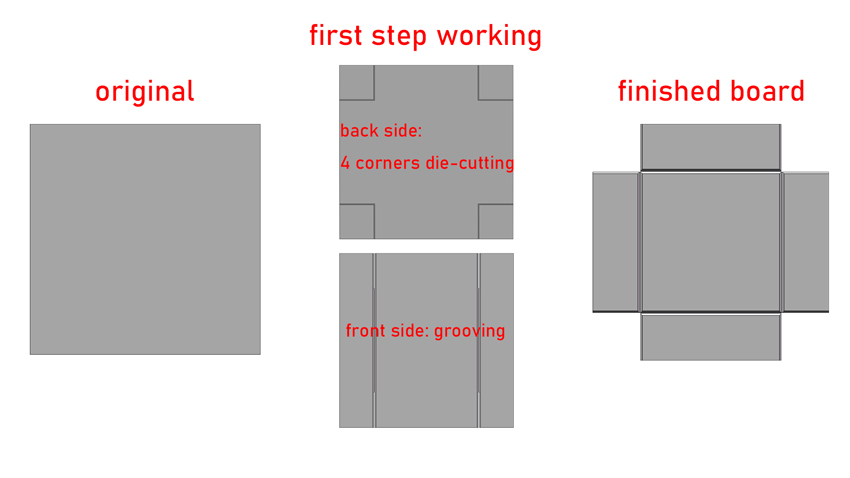

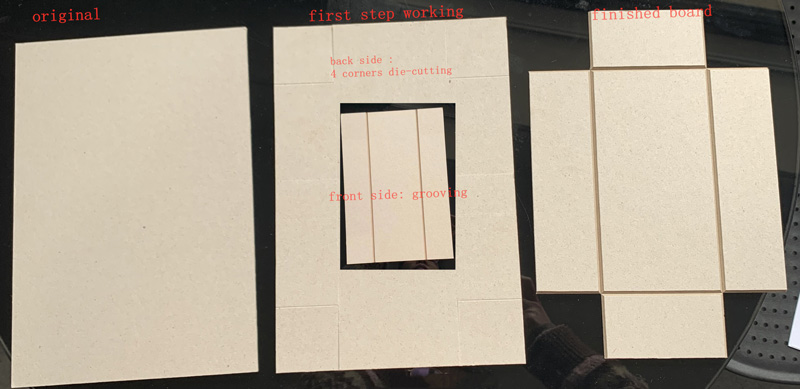

Grooving and corner cutting (corner remove)
|
|
Model |
SLG-850S |
|
Material width |
130-850mm |
|
Material length |
130-550mm |
|
Drum width |
1100mm |
|
Thickness |
1-3.5mm |
|
Best grooving accuracy |
±0.05mm |
|
Speed |
80-120PCS/Min (size of 200*200mm) |
|
Corner cutting length |
Min.13mm |
|
Corner cutting accuracy |
≤2mm |
|
Way of corners cutting |
By servo knife ,with PLC |
|
Quantity of grooving girder (crossbeam) |
2 |
|
Groove distance (between blades from the same girder) |
Min.70mm |
|
Groove distance (between blades from different girder) |
No limit |
|
Groover quantity |
9 sets |
|
Power |
3.5KW |
|
PLC |
XINJIE (MCGS TBC7062) |
|
Sensor |
Omron/Panasonic |
|
Inverter |
Senlan |
|
Relay |
German Muller |
|
Machine size |
2650*1432*1438mm |
|
Certificate |
CE |
|
Weight |
1680KGS |
|
Finished board collecting |
By slant conveyor belt with table |
|
Accessory |
1 EA sharpener of knife |
|
1 tool box:1set Allen wrench, straight screwdriver of 4 inch, open spanner, adjustable wrench, grater, instruction manual of inverter |
|
|
18 PCS blades of V shape |
|
|
Youtube video |
https://youtu.be/PqGHfg5OJ7U |
