Professional Cardboard Grooving
Machine Manufacturer
Usage :
It's suitable for various of hard cover , Lid and base boxes ,include Mobile phone boxes,shoe boxes,cosmetic boxes,rigid boxes,etc .
Advantages :
- The machine is mainly include6 parts :first corner cutting part , second corner cutting part ,first grooving part ,collecting& conveying part , second grooving part ,dedicated conveyor belt for delivery final cardboard .
- Use longer aligning device and collecting& conveying part to ensure that the cardboard go straightly into each grooving parts,then improve the grooving accuracy ,to avoid the high and low corners of box by poor grooving accuracy .
- If you no need corner cutting ( corner die cutting ) ,you can removed these corner cutting parts ,then the bidirectional grooving machine will work independently .

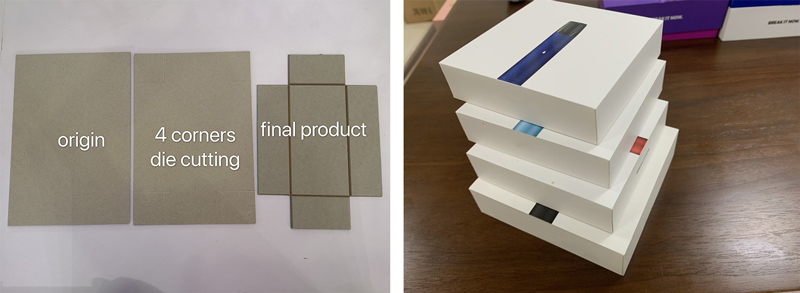

KLQ-600G automatic two-way corner cutting and grooving machine is newly invented on the basis of accumulated rich experience in bidirectional grooving machine manufacturing. It can die-cut 4 corners of cardboard, cut horizontal and vertical V-shaped grooves (U-shaped grooves) on the cardboard in one feeding, and the cardboard will fall off automatically after the 4 corners are grooved.
Improve product quality, improve production efficiency, saves labor .
Hot Tags. grooving machine,Board Cutting Machine, China, manufacturers, factory, customized, original designed
|
Material Width |
120-550mm |
|
Material Length |
100-600mm |
|
Material thickness |
1.5-3.5mm |
|
Grooving accuracy ( between double groove) |
±0.15mm |
|
The highest grooving accuracy |
±0.1mm |
|
Grooving angle |
80-140 degree adjustable |
|
Grooving tool on the first step |
8sets |
|
Grooving tool on the second step |
4sets |
|
Big Drum number |
3 |
|
Machine power |
12.7KW |
|
Corner cutting part |
Servo cutting ,cutting length is Control by PLC |
|
Length of corner cutting |
15-120mm |
|
Corner cutting precision |
≤2mm |
|
Corner cutting blade |
2+2 |
|
Speed |
Speed:100 PCS/Min ( size 300*300mm) |
|
Machine size |
4800*4000*1500mm |
|
Machine weight |
4300KGS |
|
Function : 1 Auto feeding→first corner cutting →second corner cutting→ first grooving →collecting →conveying →second grooving→Auto collector ; U grooving , V grooving |
|
|
Video link: https://youtu.be/GWd9-noIDtc |
|
