Professional Cardboard Grooving
Machine Manufacturer
Usage :
It’s suitable for various of hard cover , Lid and base boxes ,include Mobile phone boxes,shoe boxes,cosmetic boxes,rigid boxes,etc .
Advantages :

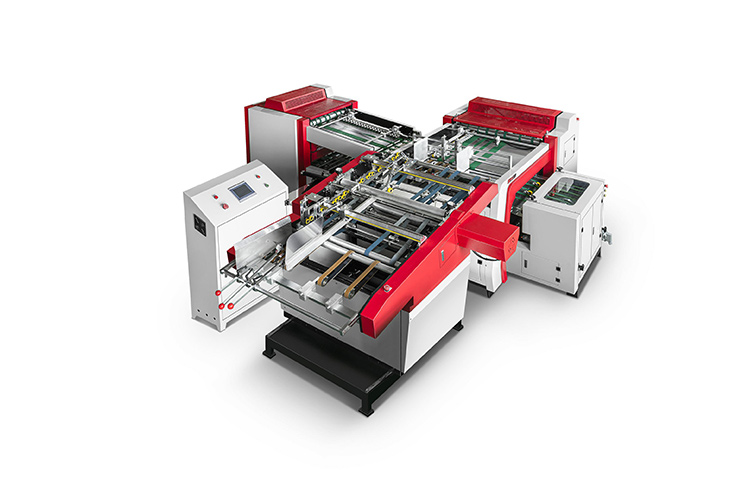

- The machine is mainly include 6 parts : 4 corners die-cutting machine , bidirectional grooving machine , finished board collecting conveyor belt .
- Use longer aligning device and collecting & conveying part to ensure that the cardboard go straightly into each grooving parts,then improve the grooving accuracy ,to avoid the high and low corners of box by poor grooving accuracy .
- If you no need corner cutting ( corner die cutting ) ,you can close the corner cutting machine ,then the bidirectional grooving machine will work independently .
Improve product quality, improve production efficiency, saves labor .
Technical parameter :
|
Material size on the 1st step |
Length 120-600mm, width 120-550mm |
|
Material size on 2nd step |
Length 120-550mm, width 120-600mm |
|
Material thickness |
1.5-3.5mm |
|
Grooving accuracy ( between double groove) |
±0.15mm |
|
The highest grooving accuracy |
±0.1mm |
|
Grooving angle |
90-130 degree adjustable |
|
Number of crossbeam |
2 on 1st grooving part , 1 on grooving part |
|
Grooving tool on the first step |
8sets |
|
Grooving tool on the second step |
4sets |
|
Big Drum number |
3 |
|
Machine power |
8KW |
|
Corner cutting part |
Servo knife cutting ,cutting length is Control by PLC |
|
Length of corner cutting |
15-120mm |
|
Corner cutting precision |
≤2mm |
|
Corner cutting blade |
2+2 |
|
Speed |
Speed:100 PCS/Min ( size 300*300mm) |
|
Machine size |
4500*3900*1450mm |
|
Machine weight |
4300KGS |
|

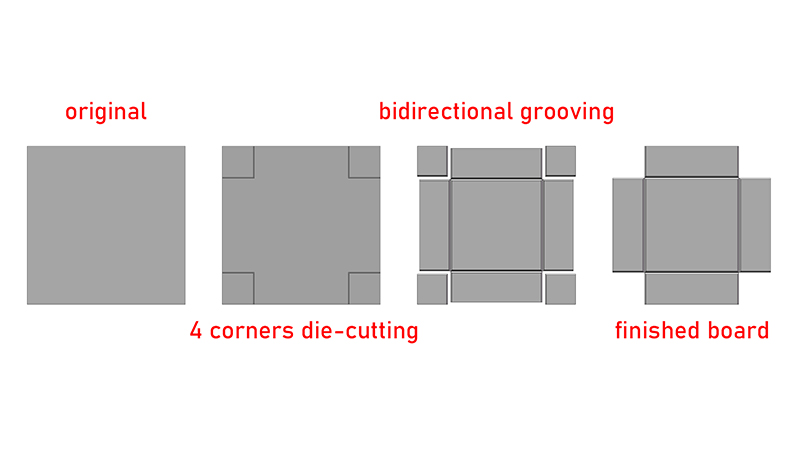

Function : 1 Auto feeding→4 corners die cutting→ first grooving →collecting →conveying →second grooving→Auto collector ; U grooving , V grooving |
|
|
Video link: https://youtu.be/llTJkWS-WPo |
|
