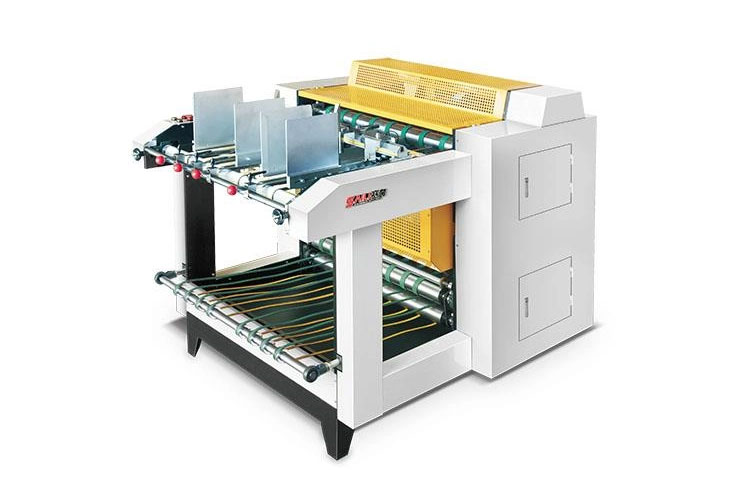

KLZ-920 Automatic Grooving Machine Feature:

Automatic box v grooving machine is used for removing the V groove / U groove fiber from cardboard,chipboard,rigid board,corrugated board,paperboard ,MDF ,etc.

KLZ-920 automatic grooving machine has high notching accuracy, dustless, little noise, highly effective, energy conservation, environmental protection. Help you to solve the package grooving problem.

KLZ-920 Automatic Grooving Machine Application:

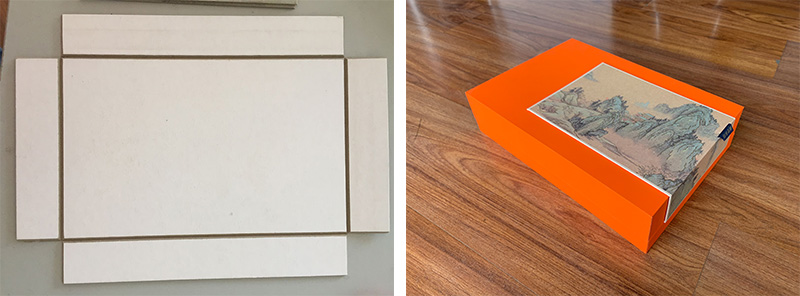

Box v grooving machine widely used in gift box,phone box,shoe box,chocolate box,jewellery box,cosmetic box,tea box ,wine box,sweet box, candle box ,rigid box ,etc

Cardboard width	100-850mm
Cardboard length	100-500mm
Thickness	200GSM-3.5MM
Grooving precision	±0.1mm
Speed	100-120PCS/Min (work piece size 200*200mm)
Grooving degree	90° knife (80-100°),120° knife (110-130°) Adjust the Angle of each knife head individually
Grooving knives	12 sets ( 12 knives in 3 rows)
Girder (crossbeam)	2
Power	2.5KW
Groove distance (between blades from different girder)	No limit
Groove distance (between blades from the same girder)	Min. 70mm
Way of waste cleaning	By dedicated conveyor belt
weight	1800kgs
