Professional Cardboard Grooving
Machine Manufacturer
Description of goods:

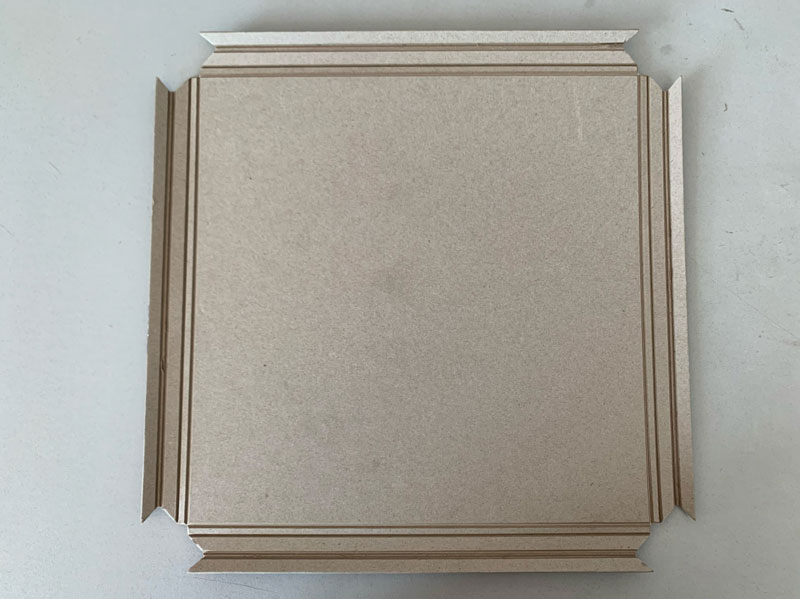

An automatic v grooving machine is a very useful machine for notching V groove into cardboard, corrugated board, chipboard, paper board, thin board, MDF, grey board, etc.
So it is suitable for grooving various models of rigid boxes, gift boxes, jewelry boxes, wine box making, shoe boxes, chocolate boxes, cosmetic boxes, mobile phone box-making machines, chocolate boxes, sweet boxes, etc.
|
Product name |
Automatic grooving machine |
|
Model |
KLZ-930B |
|
Material width |
80-850mm |
|
Material Length |
80-500mm |
|
Thickness |
200gsm-3.5mm |
|
Best accuracy |
±0.05mm |
|
Speed |
110-120 PCS/min (200*200mm) |
|
Grooving degree |
Adjust the Angle of each blade individually 90° blade (80-100°),120° blade (110-130°) |
|
Groover quantity |
12 (12 knives in 4 rows) |
|
Power |
2.5 KW |
|
Way of waste cleaning |
Blow and Suction by waste removal system ( can choose ) |
|
Machine size |
2410*1450*1350mm |
|
Certificate |
CE |
|
Weight |
1520KGS |
|
Accessory |
1 auto blade sharpener |
|
1 tool box:1set Allen wrench, straight screwdriver of 4 inch, open spanner, adjustable wrench, grater, instruction manual of inverter |
|
|
20 PCS blades of V shape |
|
|
Video link |
