Professional Cardboard Grooving
Machine Manufacturer
Feature：

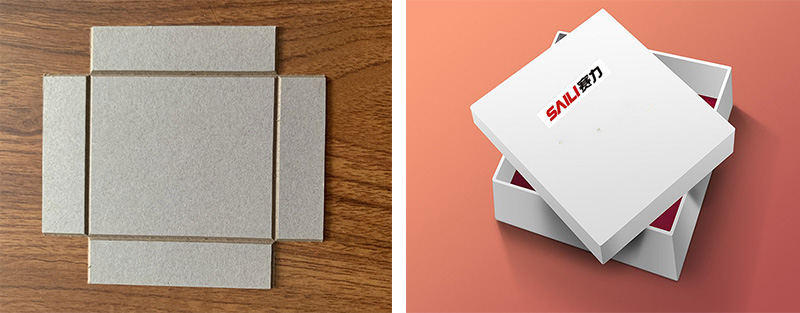

Automatic grooving machine is used for notching V groove /U groove on cardboard, chipboard, rigid board,corrugated board,paperboard ,MDF ,etc.
It has high grooving accuracy, dustless, little noise, highly effective, energy conservation, environmental protection. Help you to solve the package grooving problem.
|
Cardboard width |
100-850mm |
|
Cardboard length |
100-500mm |
|
Thickness |
200GSM-3.5MM |
|
Grooving precision |
±0.1mm |
|
Speed |
100-120PCS/Min ( size 200*200mm) |
|
Grooving tool |
With magnetic grid positioning system. |
|
Grooving degree |
90° knife (80-100°),120° knife (110-130°) Adjust the Angle of each knife head individually . |
|
Grooving knives |
12 sets ( 12 knives in 3 rows) |
|
Girder (crossbeam) |
2 |
|
Power |
2.5KW |
|
Groove distance (between blades from different girder) |
No limit |
|
Groove distance (between blades from the same girder) |
Min. 70mm |
|
Way of waste cleaning |
By dedicated conveyor belt |
|
