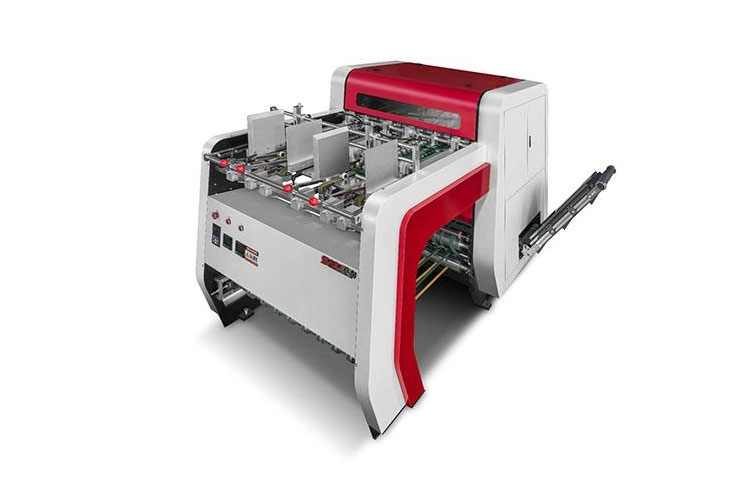

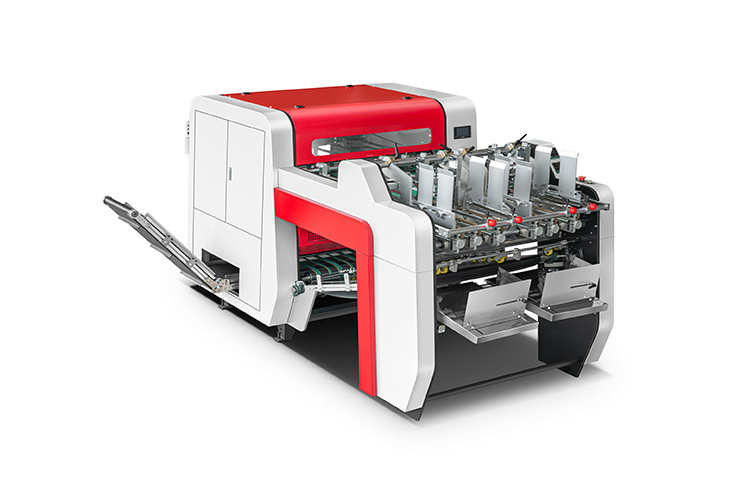

SLZ-928B Automatic Grooving Machine Feature：
- Rigid Box V Grooving Machine is used for cutting V ‘U groove into cardboard,chipboard,rigid board,corrugated board,paperboard ,MDF ,etc.
- It has high grooving accuracy, dustless, little noise, highly effective, energy conservation, environmental protection. Help you to solve the package grooving problem.
- Application:Widely used in gift box,phone box,shoe box,chocolate box,jewellery box,cosmetic box,tea box ,wine box,sweet box, candle box ,rigid box ,etc
SLZ-928B Automatic Grooving Machine Performance：
- Dedicated conveyor belt for deliver the waste material out of the machine automatically,save labor,improve output.
- Equipped with Saili special automatic blade sharpener .
- Equipped with 12 sets of grooving knife ,each knife head can be adjustment independently ,so as to adjust the grooving angle easily. 2 girders can be assembled with 3 rows of grooving knives, first girder can be hung up and down knives, 3 rows of knives can work at the same time, there is no requirement for grooving spacing.
- The grooving knife is equipped with magnetic grating position system ,help to left and right positioning.
- The finished board can be automatic delivery to the receiving table by slant conveyor belts .
- The feeding section with vacuum adsorption, favourable sheet feeding.
- The grooving accuracy can be upto ±0.05mm when it work with thin paper .
- The core part of drum is made of seamless steel,polished,chrome plated,aging treatment,precipitation,so it is not only very round,the beating accuracy is up to 0.03mm,high durability,long life,the grooving accuracy is +/-0.05mm .
- Brand electrical appliances, aluminum rectifying strip, cast iron structure beam to help the machine durable.
- No dust, no noise, no burrs;High speed and high precision;Automatic feeding, automatic rectifying, automatic slotting, automatic collecting.
Technology Parameter
|
Cardboard width |
120-850mm |
|
Cardboard length |
120-500mm |
|
Thickness |
200GSM-3.5MM |
|
Grooving precision |
±0.05mm |
|
Speed |
80-120PCS/Min ( size 200*200mm) |
|
Grooving tool |
With magnetic grid positioning system. |
|
Feeding section |
with vacuum adsorption, favourable sheet feeding |
|
Finished board receiving way |
By dedicated conveyor belt with table |
|
Grooving degree |
90° knife (80-100°),120° knife (110-130°) Adjust the Angle of each knife head individually . |
|
Grooving knives |
12 sets ( 12 knives in 3 rows) |
|
Girder (crossbeam) |
2 |
|
Power |
2.5KW |
|
Groove distance (between blades from different girder) |
No limit |
|
Groove distance (between blades from the same girder) |
Min. 70mm |
|
Way of waste cleaning |
By dedicated conveyor belt |
|
