SLZ-928S Automatic Servo Grooving Machine Features：
For all kinds of gray board, cardboard ,Ivory board ，corrugated board to cut V-groove.
High precision, no dust, no noise, high efficiency, high energy saving, environmental protection.

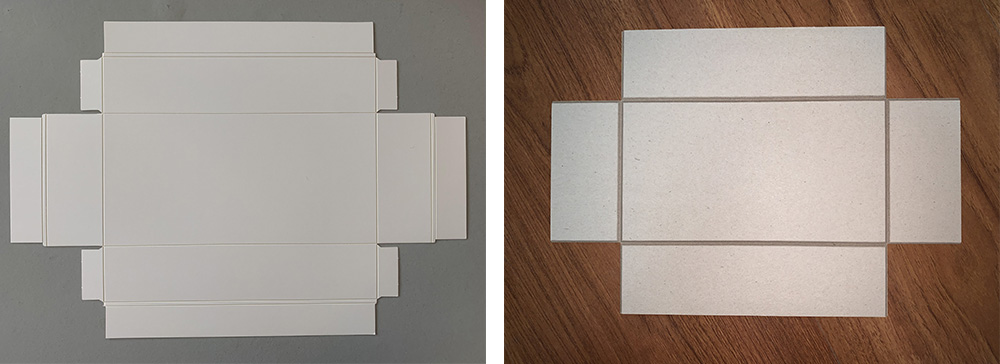

Help you to solve all kinds of packaging box grooving problems, to create high-end rigid boxes.
SLZ-928S Automatic Servo Grooving Machine Significant Advantages:
- Servo numerical control adjustment of grooving knife : left and right movement accuracy 0.02mm.
- Servo numerical control adjustment of corrective pulling gauge.
- Servo numerical control adjustment of rolling belt.
- Retain the historical size data: input groove pitch, other parts (large drum belt movement, pulling gauge movement, grooving knife seat left and right movement) a key to start in place.
- Feeding part: with vacuum adsorption, conducive to the special paper sheet feeding
- Automatic waste discharge system, automatic climbing out of the material receipt
|
Width of work piece |
120-850mm |
|
Length of work piece |
120-500mm |
|
Material thickness |
300GSM-3.5mm |
|
Feeding way |
Vacuum adsorption belt friction feeding |
|
Single or double feeding |
Single feeder |
|
Grooving accuracy |
±0.05mm |
|
The best speed |
80-120PCS/Min (size 200*200mm) |
|
Normal speed |
70-80PCS/Min |
|
Number of crossbeam |
2 |
|
Grooving degree |
90-130° |
|
Number of grooving knife |
12 ( 3 rows of grooving knives ) |
|
Power |
4.5KW |
|
Auto blade sharpener |
1 SET |
|
Motor of collecting board |
Variable frequency speed control |
|
Weight |
3.2KGS |
|
Dimension |
3260*1900*1730mm |
