SL-V8 Pulp Mold Grooving Machine

Name: SL-V8 Pulp Mold Grooving Machine
Brand: Saili
SKU: 00002
Rating: 4.1 (51 reviews)

SL-V8 Pulp Mold Grooving Machine Features: Platform movement mode is by servo drive If the flat area of paper-plastic is large that needn’t make a mold, for example, the flat area is large than the concave and convex area needn’t make the mold.

Inquiry Download

Function Introduction

SL-V8 Pulp Mold Grooving Machine Features:

Platform movement mode is by servo drive
If the flat area of paper-plastic is large that needn’t to make mold ,for example the flat area is large than the concave and convex area that needn’t to make mold.
The distance between blade and the edge of paper-plastic is upto 2.5mm(if the paper-plastic thickness is 1.2mm).
The operator can stand in the front or bear of the machine when he operate the machine ,so it can be operate by one or two people ,operators can do loading and unloading at the both sides.
It is equipped with digital indicatorof groovingknife.

Technology Parameter

Material Max.size	600*800mm
Material height	150mm
Material thickness	0.6-1.5mm
Groove distance	0-800
Knife edge Min.distance	2.5mm (if material thickness is under 1.2mm)
Groove No.	8 set , into 2 rows
Production speed	10Trips/Min (30Trips/Min empty running )
Knife position adjustment	By manual micro adjustment
Knife positioning accuracy	Right and left , depth 0.02mm
Workpiece fixation	Vacuum adsorption
Power	6.0KW /380V
Dimension	186014621500mm
Weight	2000kgs
Video link	https://s.sdncimcin.xyz/link/ncnKwdYMEDIJN3vm?sub=3

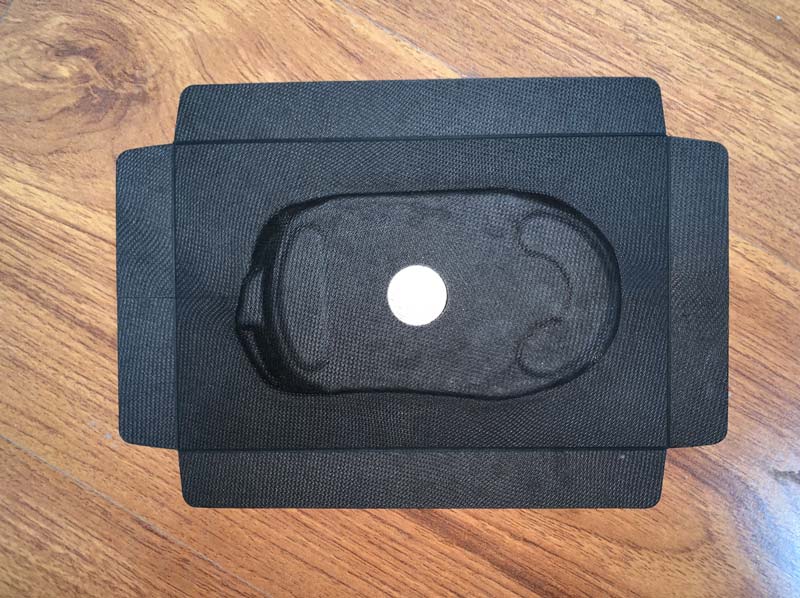

Sample Display
