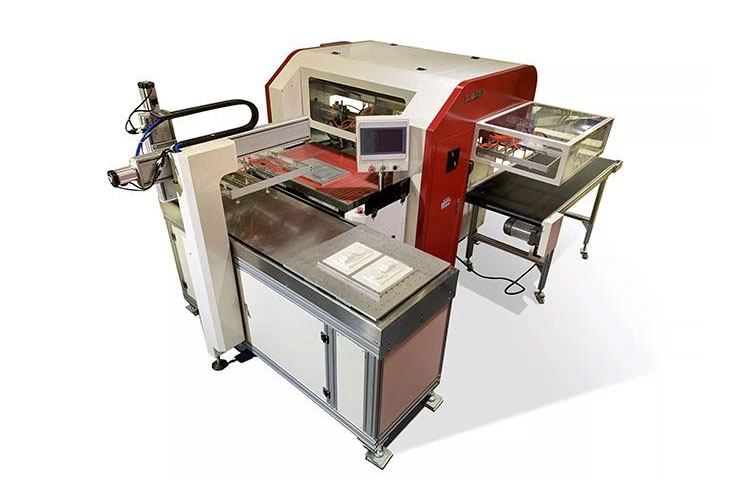

SLQ-V8 Automatic Bidirectional Grooving Machine

Name: SLQ-V8 Automatic Bidirectional Grooving Machine
Brand: Saili
SKU: 00001
Rating: 4.1 (51 reviews)

SLQ-V8 Automatic bidirectional grooving machine is special designed for pulp mold , with dual direction grooving, allowing vertical and horizontal grooving to be done simultaneously, so as to increased production efficiency and labour savings.

Inquiry Download

Function Introduction

SLQ-V8 Automatic Bidirectional Grooving Machine Features:

Platform movement mode is by servo drive.
If the flat area of paper-plastic is large that needn’t to make mold ,for example the flat area is large than the concave and convex area that needn’t to make mold .
The distance between blade and the edge of paper-plastic is upto 2.5mm(if the paper-plastic thickness is 1.2mm).
The grooving knife upper, lower ,left and right moving with manual micro adjustment.

Technology Parameter

Material	Pulp mold , paper-plastic products
Max.size	1000*600mm
Grooving knife in the first step	6sets
Grooving knife in the second step	4sets
Platform moving speed	1M/S
Power	7.5KW
Knife position adjustment	By manual micro adjustment
Knife positioning accuracy	Right and left , depth 0.02mm
Workpiece fixation	Vacuum adsorption
Video link	https://youtu.be/Fo8tuatGKLU

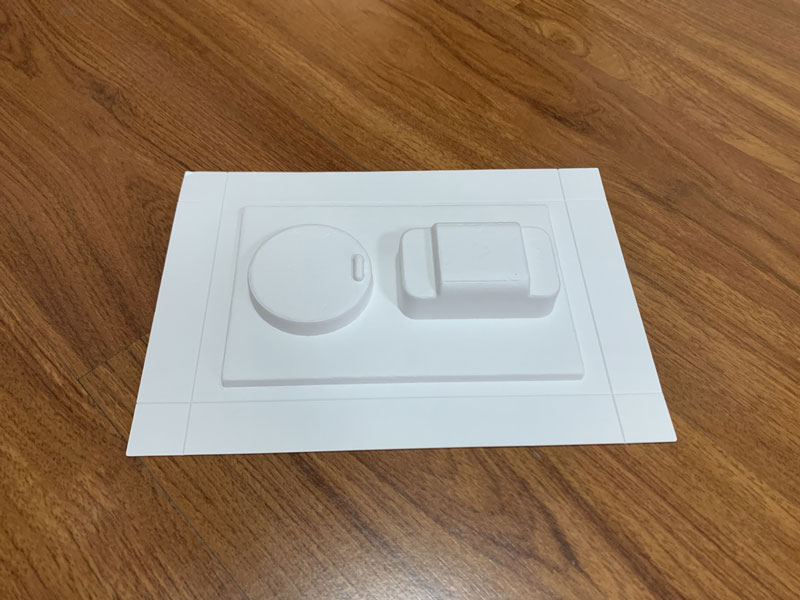

Sample Display
