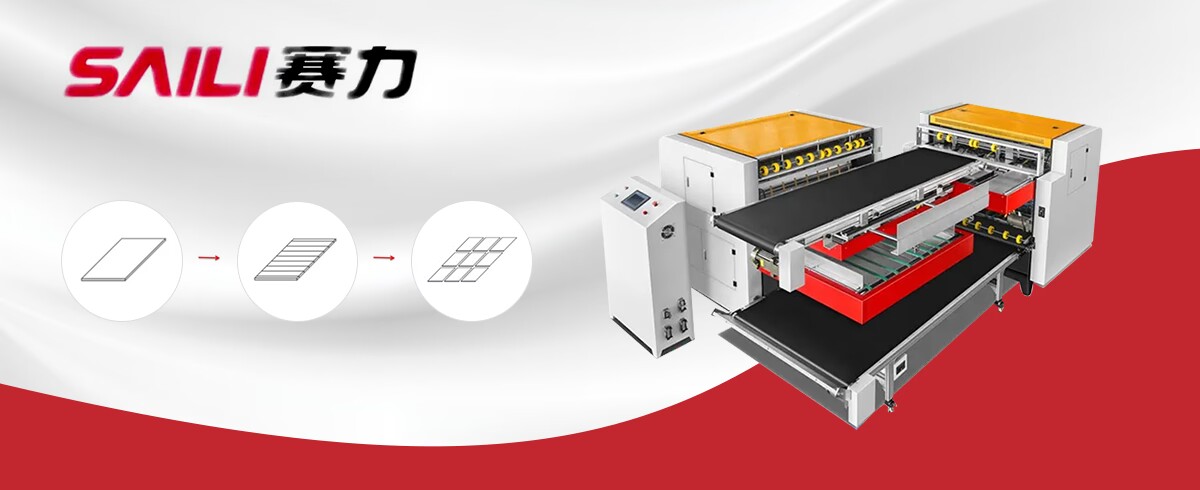

Automatic Bidirectional Cardboard Slitting Machine Performance :
- Loading original cardboard by manual ,then feeding them into machineby automatically.
- Bidirectional slitting machine is farewell to traditional ways of cutting ,adopts the new way of transportation structure and cutting. it's wrapping the cardboard on the entire surface of the drum ( the drum diameter is 60cm ), then to cut the cardboard by straight blades ,it guarantees the cutting edge straightly and smoothly,no deviation.
Straight blade is exclusive design owned by Saili.
Excellent collecting : Automatically collecthalf-finished cardboard and transportthem to the stacking platform for secondary cutting. - The secondcutter : tocutthe needed size of cardboard by straight blades ,and meanwhile clean the edge waste chip by automatically .

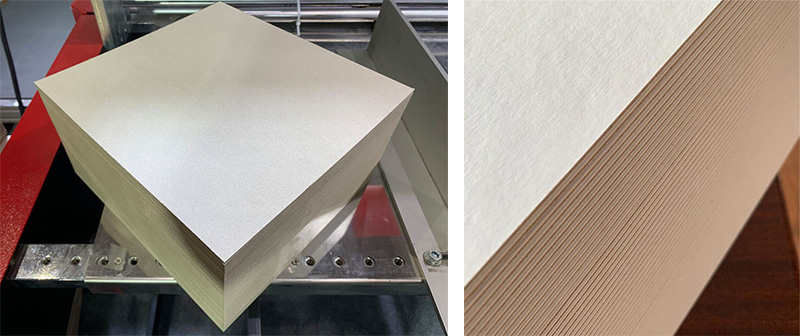

- Finished board will beautomatic deliveryby dedicated conveyor belt .
- SLF-1300 Automatic Bidirectional Cardboard Slitting Machine has the features of high accuracy ,high production efficiency ,high labor savingand with durable cutting blade .
|
Material Max.size |
1200*1200mm |
|
Material Min.size |
700*700mm |
|
Ma.size of finished board |
1200*700mm |
|
Minimal size of finished board |
140*100mm |
|
Thickness |
1.5-3.5mm |
|
Cutting speed of first cutter |
10-18 Sheets ( board size 1200*900mm) |
|
Cutting precision |
±0.15mm |
|
Min.width of Waste strip |
10mm |
|
Min.distance between two blades |
70mm |
|
Power |
10KW |
|
Voltage |
As per customer’s |
|
Blade quantity of each cutter |
8 sets |
|
Drum quantity |
2sets |
|
Drum width |
1300mm |
|
Machine dimension |
3990*2950*1485mm |
|
PLC |
Xinjie |
|
Overvoltage protection device |
Schneider |
|
Inverter |
Senlan /Schneider /Omron |
|
Relay |
Omron /Muller/Siemens |
|
Switch |
German Muller |
|
Video link : https://youtu.be/KwzRKN19_TM |
|
