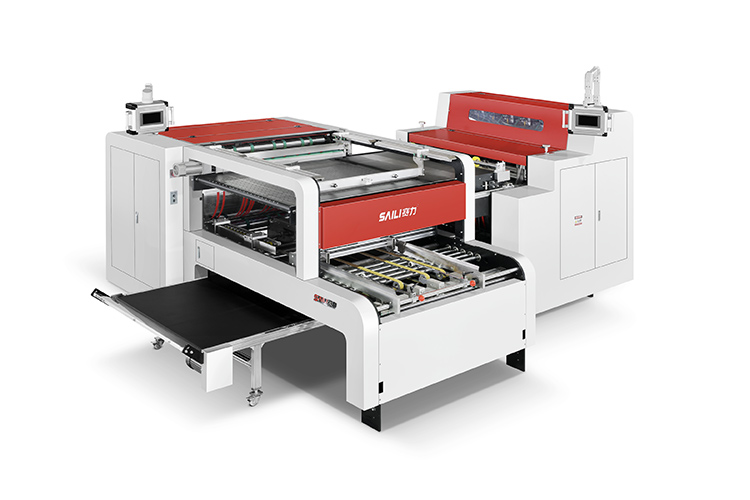

SLF-1300S Automatic Servo Bidirectional Slitting Machine (with servo cutting knife ,Feida feeder)

SLF-1300S Automatic Servo Bidirectional Slitting Machine (with servo cutting knife ,Feida feeder)

SLF-1300S Automatic Servo Bidirectional Slitting Machine Advantage :Automatic FEIDA feederBy bidirectional cutting automaticallyServo cutting knifeHigh cutting precision (±0.15mm).Automatic finished b
Inquiry Download

SLF-1300S Automatic Servo Bidirectional Slitting Machine Advantage :

  • Automatic FEIDA feeder
  • By bidirectional cutting automatically
  • Servo cutting knife
  • High cutting precision (±0.15mm).
  • Automatic finished board delivery

SLF-1300S Automatic Servo Bidirectional Slitting Machine Performance :

  • Loading original cardboard by manual ,then the board will be go in machine by automatically.

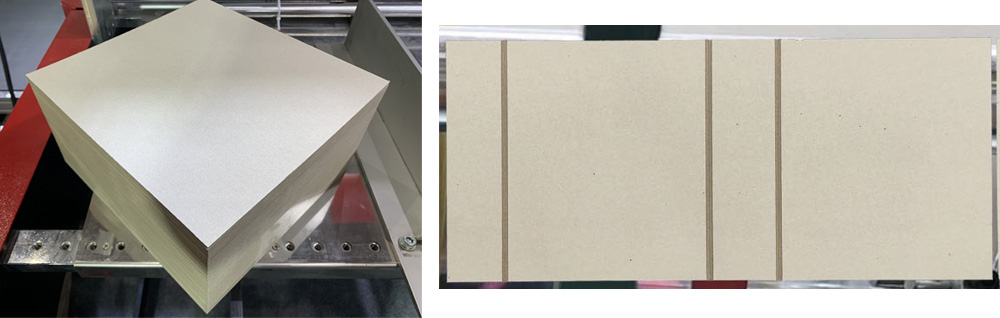

  • It is farewell to traditional ways of cutting ,adopts the new way of transportation structure and cutting . it's wrapping the cardboard on the entire surface of the drum ( the drum diameter is 60cm ), then to cut the cardboard by straight blades ,it guarantees the cutting edge straightly and smoothly,no deviation .

    Excellent collecting : Automatically collect half-finished cardboard  and transport them to the stacking platform for secondary cutting.

  • The second cutter : to cut the needed size of cardboard by straight blades ,and meanwhile clean the edge waste chip by automatically .
  • Finished board will be delivery by dedicated conveyor belt .
  • The machine has the features of high accuracy ,high production efficiency ,high labor saving and with durable cutting blade .

Material Max.size

1200*1200mm

Material Min.size

700*700mm

Ma.size of finished board

1200*700mm

Minimal size of finished board

140*100mm

Thickness

1.5-3.5mm

Cutting speed of first cutter

10-18 Sheets ( board size 1200*900mm)

Cutting precision

±0.15mm

Min.width of Waste strip

10mm

Min.distance between two blades

70mm

Power

10KW

Voltage

As per customer’s

Blade quantity of each cutter

6+10 sets (with servo cutting knife)

Drum quantity

2sets

Drum width

1300mm

Machine dimension

3990*2950*1485mm

PLC

Xinjie

Overvoltage protection device

Schneider

Inverter

Senlan /Schneider /Omron

Relay

Omron /Muller/Siemens

Switch

German Muller

Multi-function of grooving

 Can choose

Video link :
